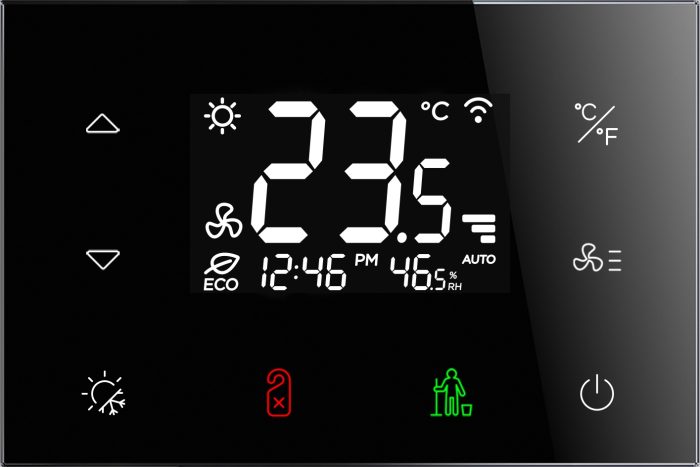

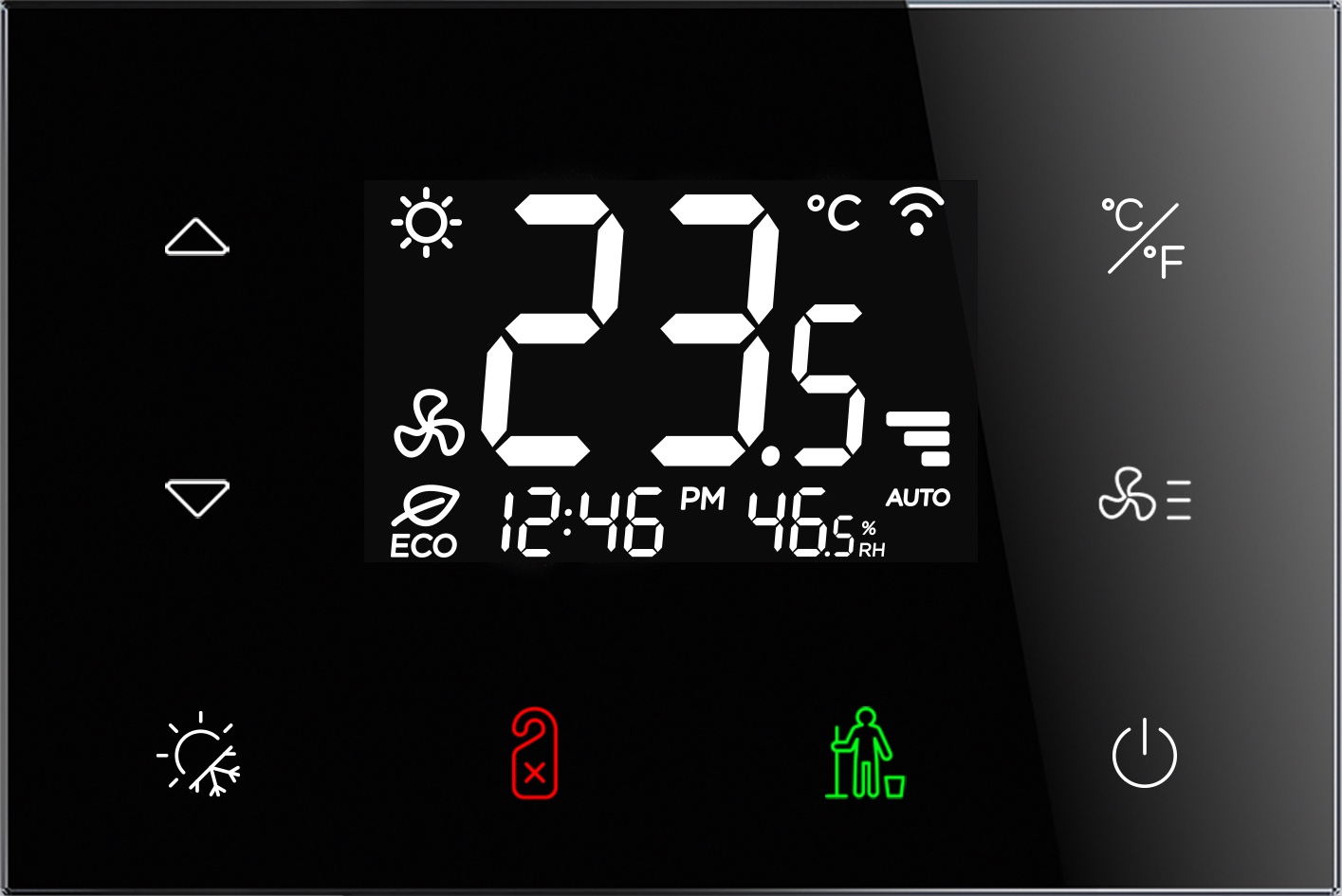

Glass touch thermostat for fancoils RFTC-3 BLACK

• Designed to control 2 and 4 pipe fan coils, chillers
• 3x relays for fan speed (LOW, MEDIUM, High), 2x relays for heating/cooling mode
• 2x analog outputs 0-10V for proportional control of valves
• 2x inputs for connecting wired detectors (magnet doors/windows); of which 1 input can
• Built-in digital temperature and humidity sensor
• Proximity sensor to activate display backlight/buttons
• VA/TN LCD display, 8 touch backlit buttons
• Screwless angle clamps for easy wire connection
• WiFi for thermostat setup (via web browser) and connection to iNELS Cloud, iNELS APP and MRS via MQTT protocol
• Modbus RTU for external HVAC devices and higher-level systems
• Power supply: AC 110 – 230V AC
• Black or white finish
• Box for mounting on EU/BS installation boxes
• Possibility of custom tuning and design modifications (button functions, icon options, logos): icons.inels.com

TECHNICAL PARAMETERS

• Power supply voltage: 110 – 230 V AC (50-60 Hz)
• Analog output: 2 x 0-10 V, 10 mA
• Radio communications: iNELS RFIO2, frequency 866-922 MHz
• Wi-Fi: AP 2,4 GHz
• Modbus: RTU 485
• Dimension: 120 x 80 x 27 mm
